TV Installation in the TV Fortress
1. Place your TV on a sturdy table screen facing down.
2. The screw holes in the back of the TV may be hidden by plastic plugs. Just pry them off.
3. Locate the mounting brackets and line them up with the VESA screw holes on the back of your TV.
Use the examples below to set proper fitment.
4. Tighten the screws thru the Brackets into the TV.
5. Lift up the TV and place the tilting hook of the bracket on the top internal mounting rail of the Fortress
6. Pull the cords slightly to open the bracket locking mechanism, then release the cords locking the TV in place.
7. To remove the TV pull the cords and pull the bottom of the TV forward then lift the TV up and out of the TV Fortress.
Custom Theft Proof Flush Mount Installation

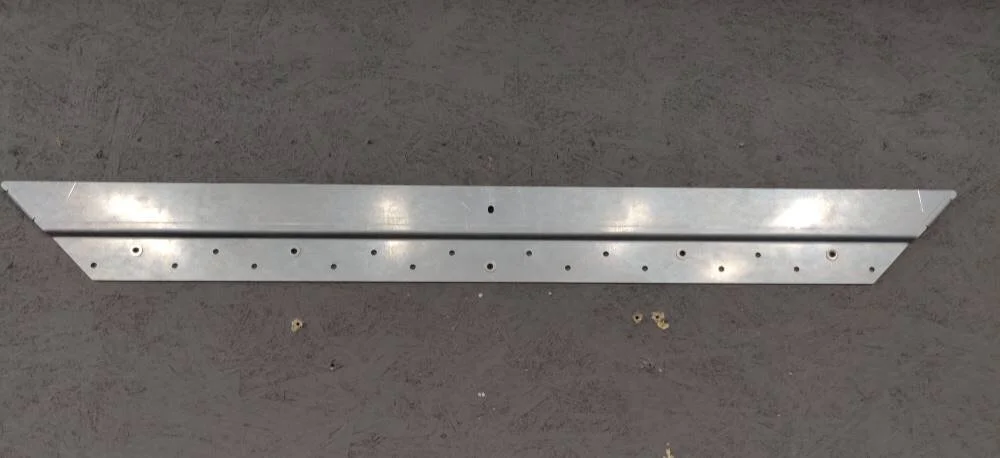

1. Install the Top and Bottom Brackets on your wall. Be sure to attach the brackets with the proper secure hardware (not included).
2. Attach the Top and Bottom brackets to the back of the TV Fortress (7 bolts (1/2 IN) included)
Finished Wall View
Finished Back of Fortress
3. Lift the Fortress and lower the brackets into the brackets mounted on the wall, it should self level.
4. Looking inside the Fortress find the Locking set screw hole, insert and tighten the set screw.
Download Custom Theft Proof Flush Mount Installation Instructions
